10BASE-T1S Equipped Network I/O System
CPU Unit

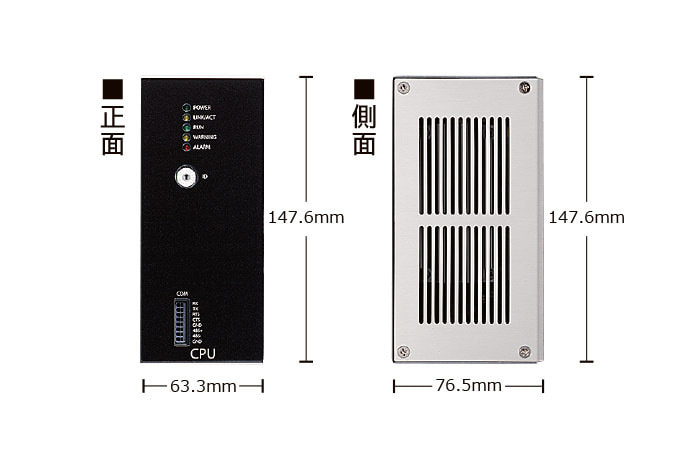

GTnio3002


The GTnio3002 is a CPU unit featuring one 10BASE-T1S port.
The 10BASE-T1S industrial communication standard enables seamless communication between upper and lower levels using IP protocol.


[Reduced software development man-hours]
 Conventional Ethernet can be used with layers higher than MAC.
 This eliminates the need for protocol conversion and reduces development man-hours.

[Supporting multidrop connections]
 More than 25m and more than 8 nodes can be connected on one line.
 It achieves simplified wiring and flexibility in system configuration.

[Physical Layer Collision Avoidance (PLCA)]
 Collision is avoided on the hardware side, not the protocol.
 The PLCA feature ensures stable and reliable communication.

[Single pair cable connection]
 Communication is possible with one pair of wires rather than the usual two pairs.
 It significantly reduces installation time and cost for wiring.

[Easy-to-handle terminal block specification for connection terminals]
 A terminal block is used for 10BASE-T1S connection.
 It is easy to work with and install on site.

*Components mounted may differ depending on variations, etc.
*Product appearance and functional specifications are subject to change without notice.
