【Media conversion】

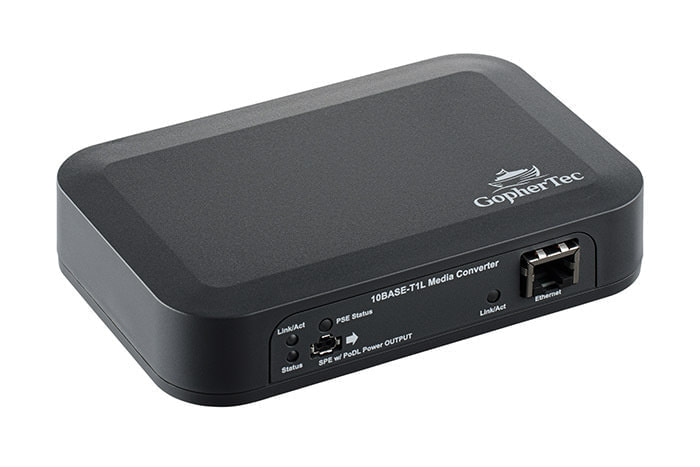

This product performs media conversion between standard Ethernet (10BASE-T) and IEEE803.cg standard 10BASE-T1L. Simply by connecting your equipment and this product with a LAN cable, Ethernet communication can be performed over a cable length of 1000m. The cable used is a two-core (one pair) twisted pair, single-pair Ethernet (SPE) cable, which offers advantages in terms of cost, space, and handling compared to conventional LAN cables.

【Support PoDL function】

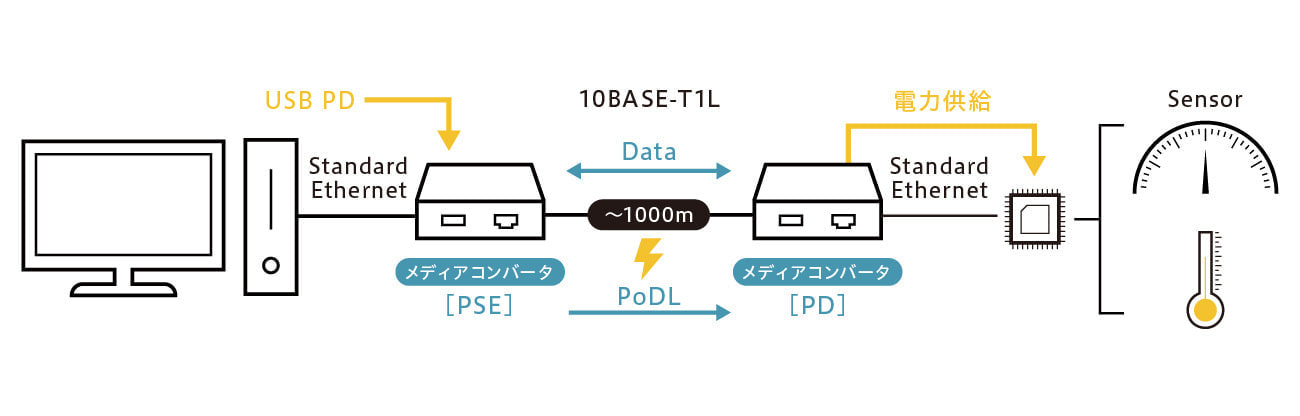

The 10BASE-T1L standard defines a PoDL (Power over Data Lines) function that enables data transmission and power supply over one cable.This product lineup includes a PoDL PSE module with a power supply function and a PoDL PD module that draw power from an SPE cable. The PD module can output the drawn power externally and can be used as a power source for edge-side connected equipment and sensors.
