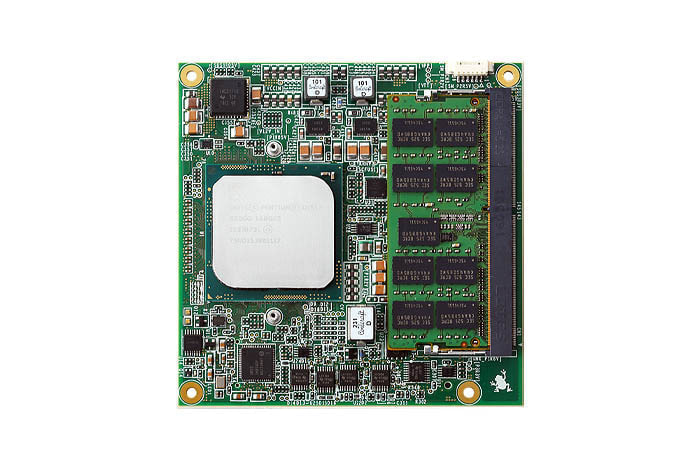

Intel Xeon D-1500 processor COM Express Type6 Module
KnightFrogs-WINE
Intel 3rd generation 64-bit SoC Intel Xeon/Pentium processor-based
COM Express module with meticulous attention to detail.
Equipped with 10Gb Ethernet. ECC compatible. Extended temperature range.
Can be mounted with Intel Xeon D-1500 Product Family for Extended-Temp (-40 to 85°C).
Main memory is DDR4 SO-DIMM, up to 16 Gbytes, and ECC is supported.
In addition to standard I/O of COM Express type 6, 2 channels of 10G ethernet can be equipped on the carrier board.
An ample operating temperature range (-5 to 70°C) improves environmental compatibility.
Also available in Basic Module Size (125 x 95 mm).
Carrier board for evaluation
(FlexATX standard) available.

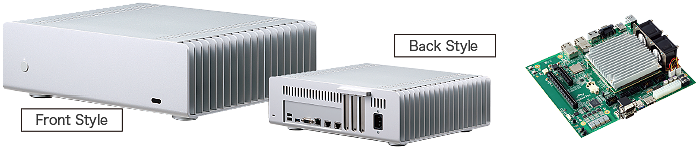

New general-purpose case released!
KnightFrogs is a registered trademark of GopherTec.Inc.
Intel, the Intel logo, Intel Xeon, and Pentium are trademarks of Intel Corporation in the United States and other countries.
The TM and ® marks may be omitted at the time of description.
*Components mounted may differ depending on variations, etc.
*Product appearance and functional specifications are subject to change without notice.
