Intel Atom x6000E processor Flex-ATX Board



Intel Atom x6000E processor Flex-ATX Board



Equipped with the Intel Atom x6000E Processor Series, enhanced for industrial IoT.
Compatible with a -40°C to 85°C extended temperature range.
Main memory is LPDDR4x mounted onboard, up to 16GB, and supports In-Band ECC.
Can be used as a mass production machine as it is.
Customization based on this product is available upon request.

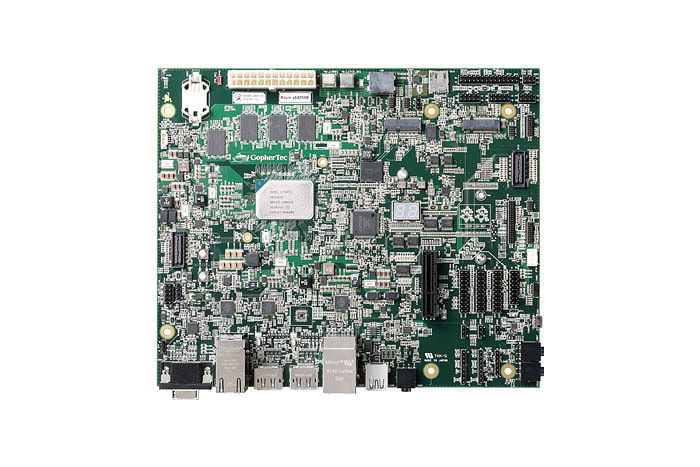

This product is a CPU board equipped with the Intel ATOM x6000E, a CPU with enhanced performance for industrial IoT.

The Intel ATOM x6000E is an IoT edge processor with the latest generation of power-saving cores.
Products are available with 4 or 2 CPU cores and operate at up to 3.0 GHz when turbo boosted.
LPDDR4x is used for main memory, which can be expanded up to 16 GB.
Built-in "ARM Cortex-M7" core as Programmable Service Engine (PSE) that offloads real-time processing to reduce CPU core load.
In addition to analog VGA, it has two graphics output ports supporting 4K@60fps.
Flex-ATX size allows for easy housing in commercially available PC cases, etc.
The extended temperature range of -40 to 85°C is supported, making it directly adaptable to operating environments with severe temperature conditions.
KnightFrogs is a registered trademark of GopherTec.Inc.
Intel, the Intel logo, Intel Xeon, and Pentium are trademarks of Intel Corporation in the United States and other countries.
The TM and ® marks may be omitted at the time of description.
*Components mounted may differ depending on variations, etc.
*Product appearance and functional specifications are subject to change without notice.
