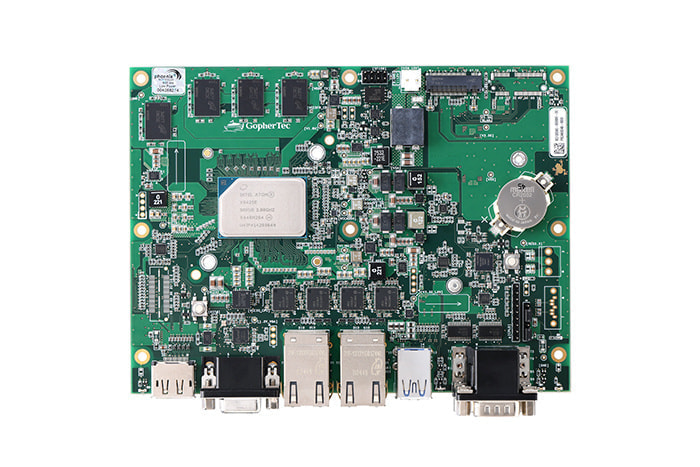

Intel Atom x6000E processor Embedded Board

KnightFrogs-BRANDY25



Single Board Computer with Intel Atom x6000E series


Enhanced for IoT, Intel Atom® x6000E processor series processors deliver next-generation CPU and graphics performance with integrated support for real-time computing, Ethernet and industrial-centric I/Os. To enhance workload consolidation and meet IoT-centric requirements, x6000E series processor has Intel Programmable Services Engine (Intel PSE). It facilitates numerous new functions; supports real-time, ARM-based applications; and manages industrial I/Os. Dual displays can be used simultaneously and be used to implement independent or cloned display configuration using analog VGA and DisplayPort. And it also supports four 1000BASE-T Ethernet ports and two legacy DE-9 RS232C ports.

- Intel Atom x6000 series processors enhanced for industrial IoT
- 4 cores, 4 threads, Up to 3.0 GHz frequency
- On-board LPDDR4x memory 8GB or 16GB with in-Band ECC
- 1x Analog VGA FHD
- 1x DisplayPort 4K@60Hz
- 1x M.2 Key M Type2280 for NVMe
- 1x M.2 Key E Type2230 for Wi-Fi/Bluetooth (Option)
- 1x SATA 3.0 (Option)
- 4x 10/100/1000BASE-T
- 2x USB3.1
- 2x RS232C
- DC12V power
- 175mm x 130mm
- Custom enclosure design services are also available

KnightFrogs is a registered trademark of GopherTec Inc.
Intel, the Intel logo, Intel Xeon, and Pentium are trademarks of Intel Corporation in the United States and other countries.
The TM and ® marks may be omitted at the time of description.
*Components mounted may differ depending on variations, etc.
*Product appearance and functional specifications are subject to change without notice.
